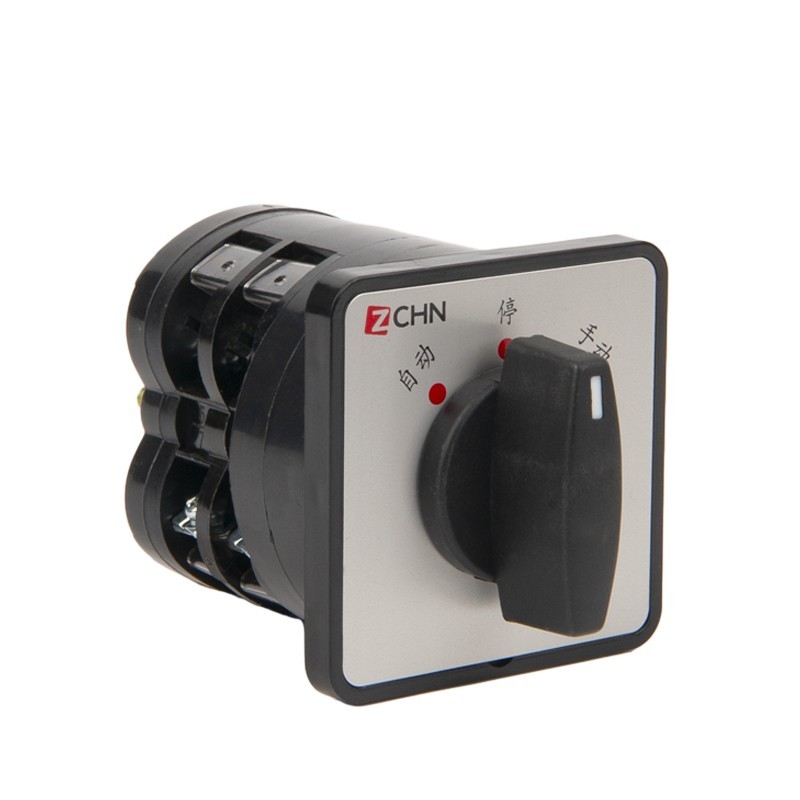

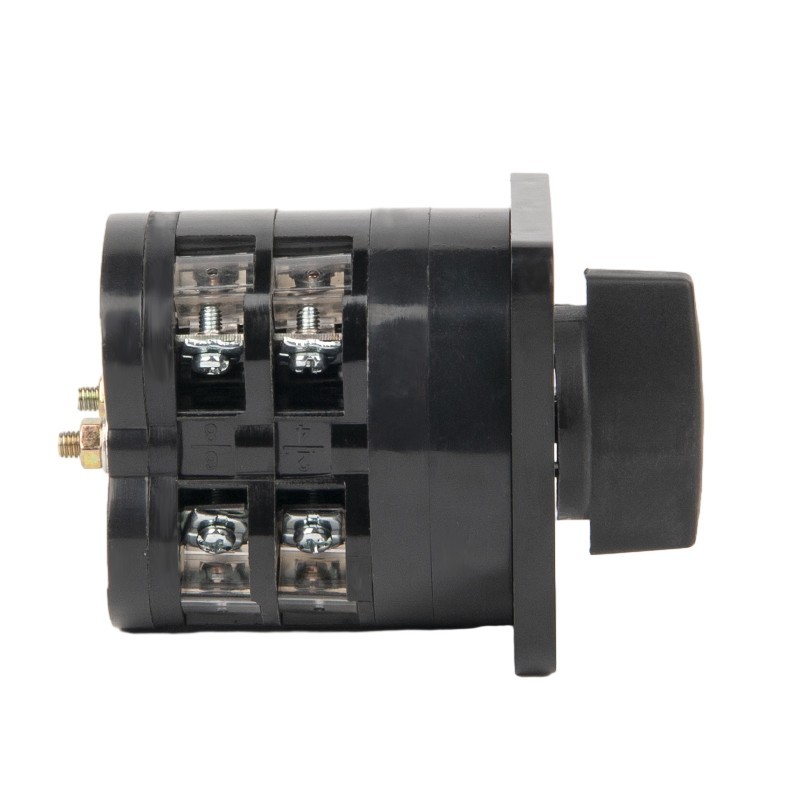

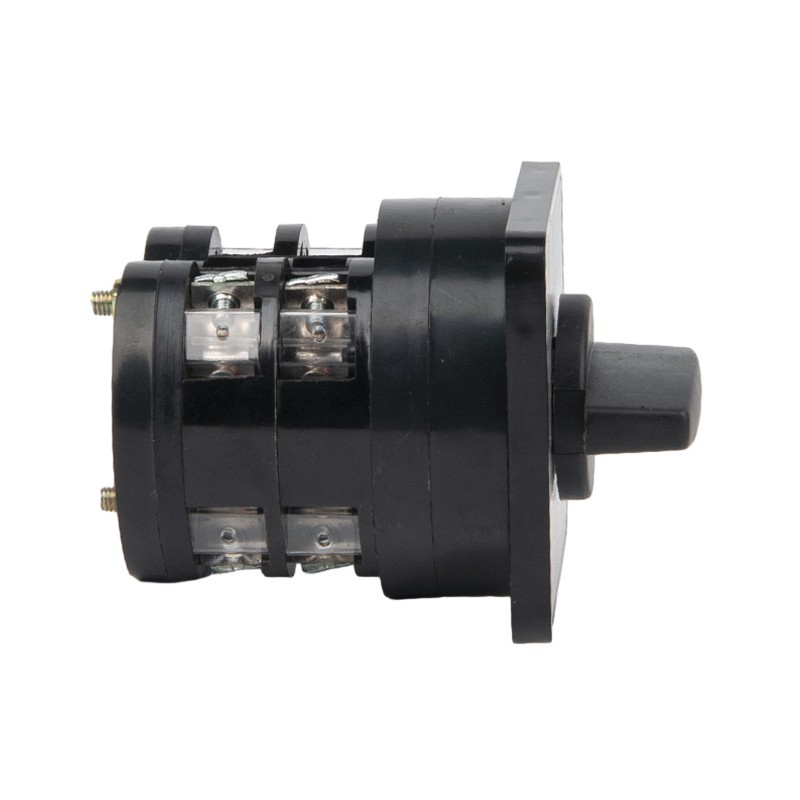

                Interruptor de cambio LW5-16A/2P
                • Interruptor de cambio LW5-16A/2PInterruptor de cambio LW5-16A/2P
                • Interruptor de cambio LW5-16A/2PInterruptor de cambio LW5-16A/2P
                • Interruptor de cambio LW5-16A/2PInterruptor de cambio LW5-16A/2P
                • Interruptor de cambio LW5-16A/2PInterruptor de cambio LW5-16A/2P

                Interruptor de cambio LW5-16A/2P

                Puede estar seguro de comprar un interruptor de cambio Lixin LW5-16A/2P. El significado de LW5-16A/2P: "LW5" significa la serie de productos. "16a" representa la corriente de calefacción acordada es de 16 amperios. "2p" representa el número de polos es 2 series, este interruptor es adecuado para el voltaje AC de hasta 500V y el voltaje de 440V se aplica a 440V. Convertir las líneas de control eléctrico en circuitos, y también puede controlar directamente el arranque del motor, la conversión reversible, el cambio de velocidad, etc. tiene una estructura compacta, alta confiabilidad y puede funcionar de manera estable en entornos eléctricos complejos, este interruptor puede satisfacer su variedad de necesidades de control eléctrico.

                Enviar Consulta

                Descripción del Producto


                As the professional changeover switch producer,we highly recommend you to purchase Lixin LW5 changeover switch.This switch likes the commander of circuit world,giving you the absolute control of the circuit by its remarkable performance and flexible operation.LW5 is designed to satisfy the needs of diverse control,whether it is a simple circuit on and off, or complex multiplexing,the LW5 can handle it with ease.

                LW5 is made of high quality engineering plastics and metal materials,which has excellent insulation,heating resistance and mechanical strength to ensure stability and reliability in high temperature,humidity,vibration and other harsh environment.LW5 provides a variety of contact combinations and operation modes, including handle operation, cam operation, electric operation, etc,you can choose the modes according to the actual needs.LW5 is equipped with clear mandatory sign and reliable locking device that can prevent misoperation and ensure the safety of apparatus and operator.

                LW5 changeover switch is the ideal choice of handling circuit efficiently and safe.

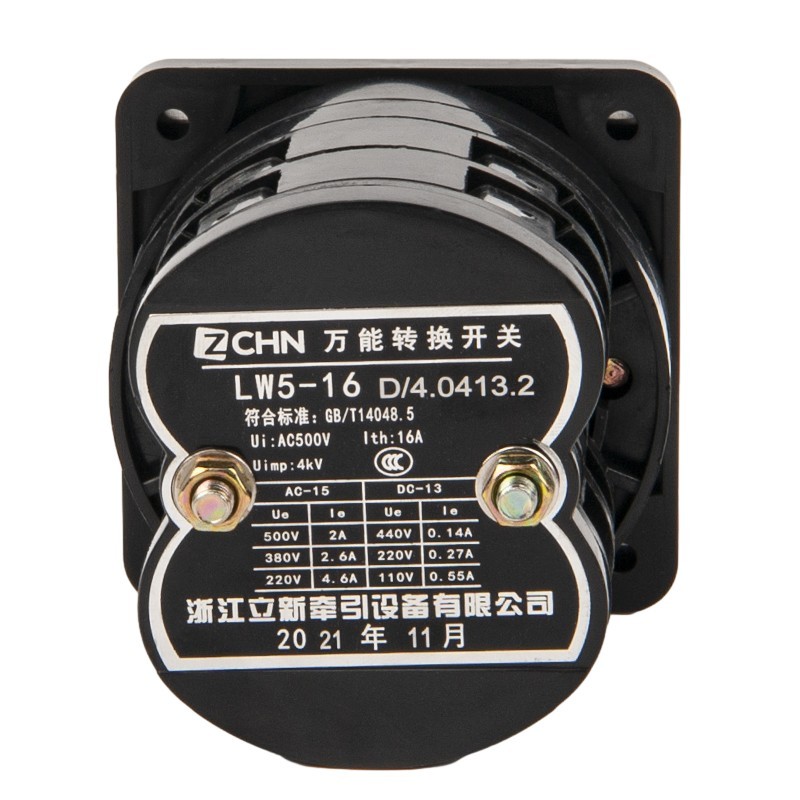

                Lixin Environmental Protect Rotary Cam Switch Parameter (Specification)


                use

                Master control

                Direct control motor

                Ith     A

                16

                16

                Ue     V

                125220250380400500

                380

                le

                AC-15        A

                4.6 2.6     2.0

                AC-3          A

                12

                AC-4          A

                3.5

                DC-13 Double break point   A

                0.55 0.27     0.14

                DC-13 Four-break point      A

                0.82 0.41     0.20

                Lixin Environmental Protect Rotary Cam Switch Mechanical and electrical life

                Mechanical lifespan: 0.3×10⁶ cycles, with an operating frequency of 300 cycles per hour.

                Electrical lifespan:

                - For AC-15 and DC-13: 0.1×10⁶ cycles, with an operating frequency of 300 cycles per hour.

                - For AC-3: 0.1×10⁶ cycles, with an operating frequency of 120 cycles per hour.

                - For AC-4: 0.1×10⁶ cycles, with an operating frequency of 120 cycles per hour.


                (Note: AC-15 and DC-13 refer to specific types of electrical loads, while AC-3 and AC-4 refer to different duty types for switching AC motors.)

                Mode of operation

                Feature code

                Actuator position

                Self-replicating type

                A

                0°-45°

                B

                45°→0°-45°











                Locating type

                C

                0° 45°

                D

                45°  0° 45°

                E

                45°  0° 45°   90°

                F

                90°  45°  0° 45°   90°

                G

                90°  45°  0°  45°  90°  135°

                H

                135°  90°  45°  0°  45°  90°  135°

                l

                135°  90°  45°  0°  45°  90°  135°   180°

                J

                120°  90°  60°  30°  0°  30°  60°   90°  120°

                K

                120°  90°  60°  30°  0°  30°  60°   90°   120°  150°

                L

                150°  120°   90°   60°  30°  0° 30°  60°   90°   120°    150°

                M

                150°  120°   90°   60°  30°  0° 30°  60°   90°   120°   150°   180°

                N

                45°   45°

                P

                90°  0°  90°

                Lixin Environmental Protect Rotary Cam Switch Overall dimensions and mounting dimensions
