Interruptor de desconexión de carga de la serie LW30

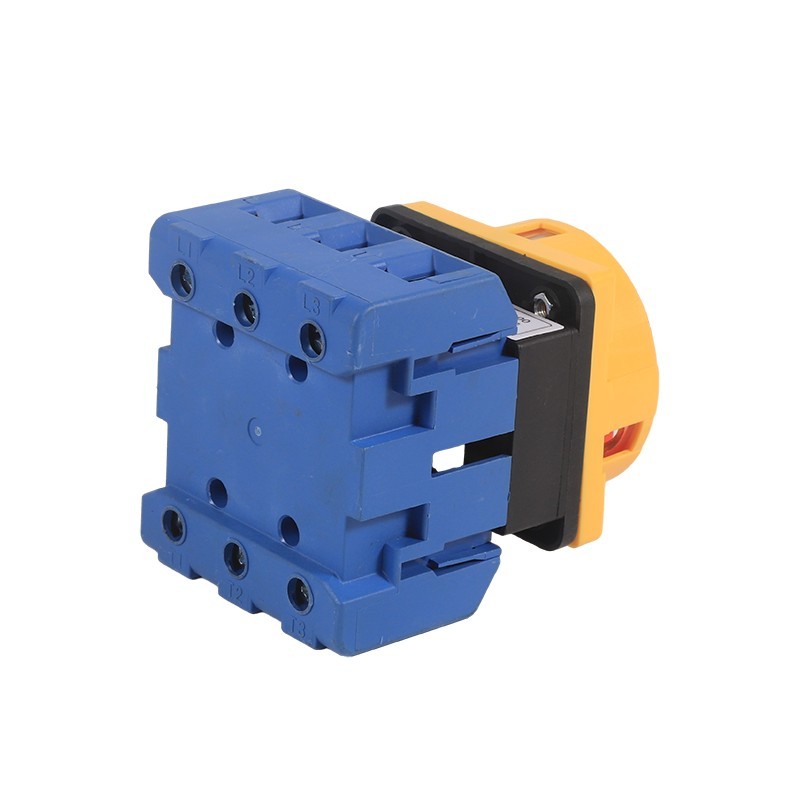

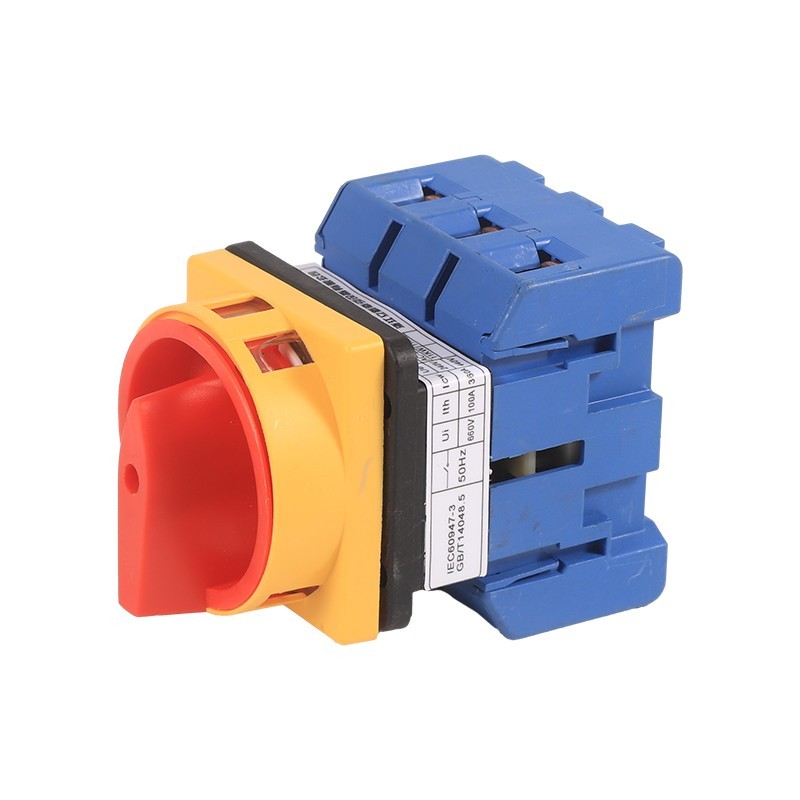

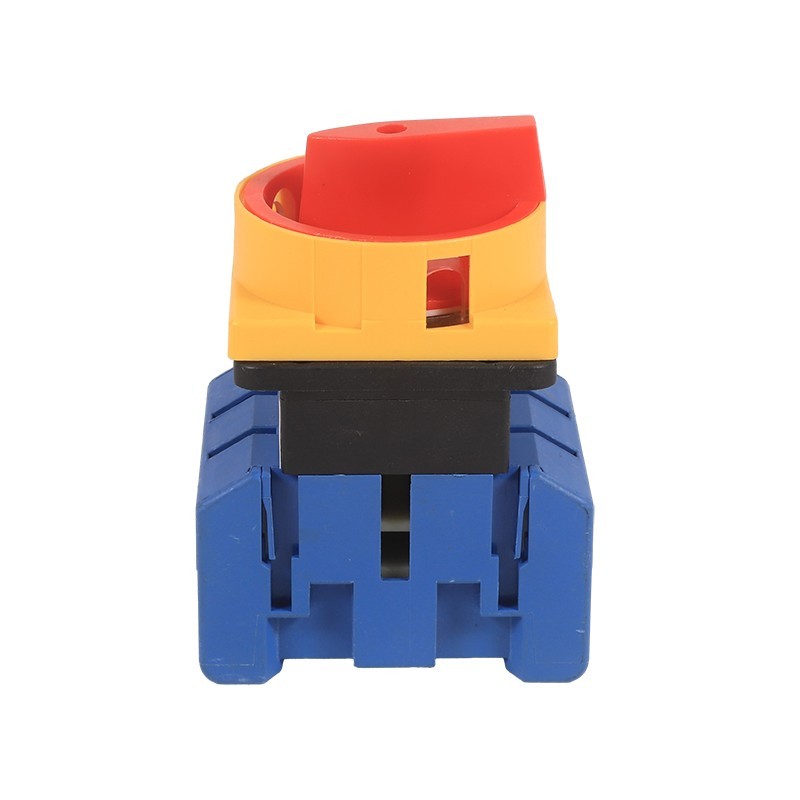

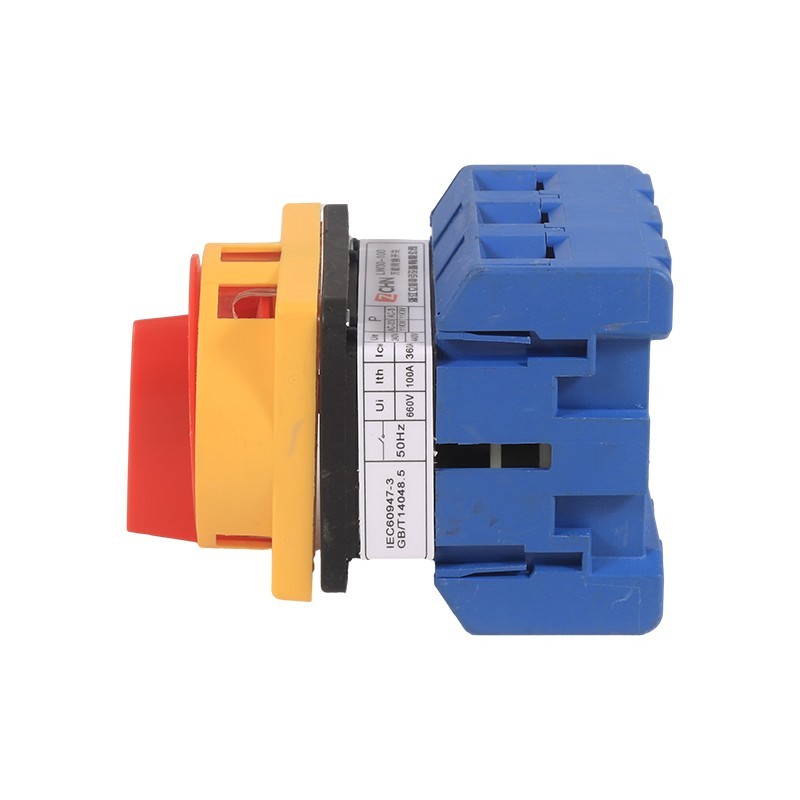

Introducing the LW30 series load disconnect switch by Lixin, setting a new standard in modern electrical control solutions.Our LW30 series switch has complete specification,we have 20A,25A,32A,40A,63A,80A and 100A current grades.LW30 has many different features,such as small volume,compact structure,high quality materials,better insulation,finger protection,safety and reliable.You can add different contact blocks to the 3-pole standard block without removing the switch.The insulation distance of LW30 series switches is greater than that of other switches of the same type,it has fast disconnect speed and suit for DC switch.

There are some installation precautions you need to conform when you install the switch.Before installing the switch,you must ensure that the power is disconnected to avoid electric shock.The environment must be dry and draughty,can not be high temperature and damp.You have to use fit screws to secure the switch.You need to connect cables according to the circuit diagram to ensure that power cables and load cables are correctly connected to avoid poor contact.

Following the above precautions,you can ensure the safe and reliable operation of the switch.If there is an anomaly, it should be replaced or repaired in time to ensure the normal operation and service life of the product.

Working conditions of Lw30 Series Load Disconnect Change over Switch

Normal Working Conditions

(1) The ambient air temperature does not exceed +40 degrees, and the average temperature within 24 hours does not exceed 25°C;

(2) The lower limit of the ambient air temperature does not exceed -25°C

(3) The altitude of the installation location does not exceed 2000m;

(4) When the maximum temperature is +40°C, the relative humidity of the air does not exceed 50%. Higher relative humidity is allowed at lower temperatures, such as 90% at 20°C. Special measures should be taken to deal with condensation that occasionally occurs due to temperature changes.

Installation Conditions

(1) The switch is installed in environmental conditions of pollution level 3;

(2) Install according to the instructions provided by the factory.

Classification

1. According to usage categories

(1)AC-23A

(2)AC-3

2. According to the protection level provided (1) without switch box: IP20

(2) With thermoplastic sealed switch box: IP65

Auxiliary Specification Code

Number of levels: 3 for third level, 4 for fourth level

Additional contacts: 0 without, 1 with side-mounted auxiliary contacts

Intermediate terminal: 0 without, 1 with neutral terminal

Ground terminal: 0 without, 1 with ground terminal

Product model and its meaning

Lixin Lw30 Series Load Disconnect Change over Switch Parameter (Specification)

Rated Working Day

8-hour working system/intermittent cycle working system, operating frequency is 30 times/h

Electrical Life

10,000 times for AC-23, 6,000 times for AC-3, 2,000 times for auxiliary contacts
